leaflet 结合 Echarts4 实现迁徙图(附源码下载)

前言

leaflet 入门开发系列环境知识点了解:

内容概览

leaflet 结合 Echarts4 实现迁徙图
源代码 demo 下载

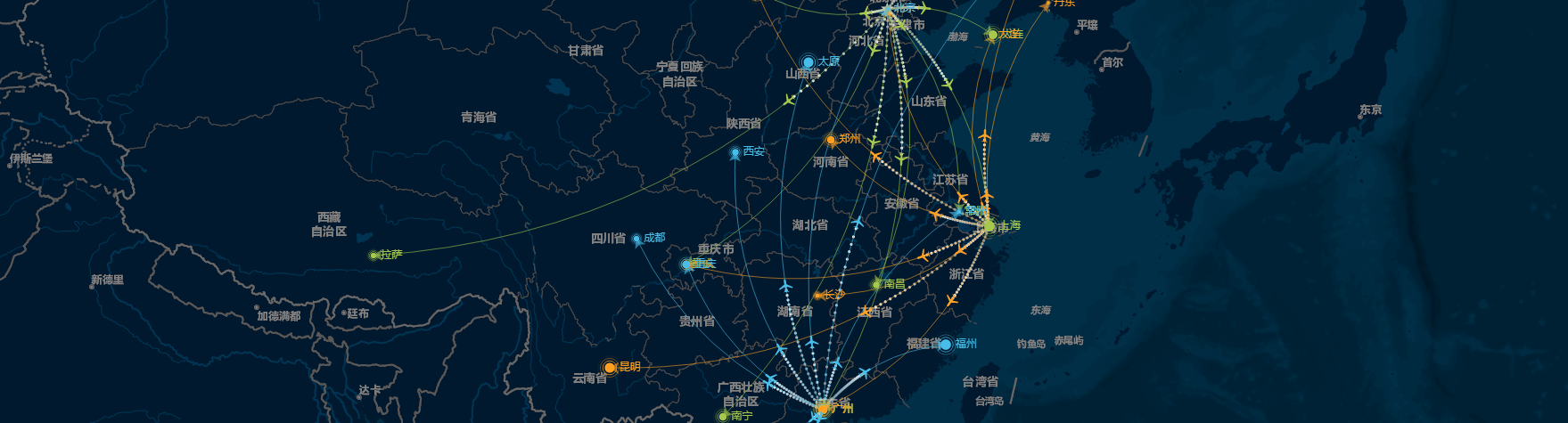

本篇 demo 利用 leaflet api 结合 Echarts4 实现迁徙图功能,效果图如下:

实现思路:在leaflet 结合 Echarts4 实现散点图(附源码下载)基础上实现的

  • 地图初始化
  var map = L.map('map');
  L.tileLayer('http://map.geoq.cn/ArcGIS/rest/services/ChinaOnlineStreetPurplishBlue/MapServer/tile/{z}/{y}/{x}').addTo(map);
  map.setView(L.latLng(37.550339, 104.114129), 4);  //设置缩放级别及中心点
  • Echarts 相关 options 配置
    ```
    var geoCoordMap = {
    "海门":[121.15,31.89],
    "鄂尔多斯":[109.781327,39.608266],
    ……
    };

    var BJData = [
    [{name:'北京'}, {name:'上海',value:95}],
    [{name:'北京'}, {name:'广州',value:90}],
    [{name:'北京'}, {name:'大连',value:80}],
    [{name:'北京'}, {name:'南宁',value:70}],
    [{name:'北京'}, {name:'南昌',value:60}],
    [{name:'北京'}, {name:'拉萨',value:50}],
    [{name:'北京'}, {name:'长春',value:40}],
    [{name:'北京'}, {name:'包头',value:30}],
    [{name:'北京'}, {name:'重庆',value:20}],
    [{name:'北京'}, {name:'常州',value:10}]
    ];

    var SHData = [
    [{name:'上海'},{name:'包头',value:95}],
    [{name:'上海'},{name:'昆明',value:90}],
    [{name:'上海'},{name:'广州',value:80}],
    [{name:'上海'},{name:'郑州',value:70}],
    [{name:'上海'},{name:'长春',value:60}],
    [{name:'上海'},{name:'重庆',value:50}],
    [{name:'上海'},{name:'长沙',value:40}],
    [{name:'上海'},{name:'北京',value:30}],
    [{name:'上海'},{name:'丹东',value:20}],
    [{name:'上海'},{name:'大连',value:10}]
    ];

    var GZData = [
    [{name:'广州'},{name:'福州',value:95}],
    [{name:'广州'},{name:'太原',value:90}],
    [{name:'广州'},{name:'长春',value:80}],
    [{name:'广州'},{name:'重庆',value:70}],
    [{name:'广州'},{name:'西安',value:60}],
    [{name:'广州'},{name:'成都',value:50}],
    [{name:'广州'},{name:'常州',value:40}],
    [{name:'广州'},{name:'北京',value:30}],
    [{name:'广州'},{name:'北海',value:20}],
    [{name:'广州'},{name:'海口',value:10}]
    ];

    var planePath = 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z';

    var convertData = function (data) {
    var res = [];
    for (var i = 0; i < data.length; i++) {
    var dataItem = data[i];
    var fromCoord = geoCoordMap[dataItem[0].name];
    var toCoord = geoCoordMap[dataItem[1].name];
    if (fromCoord && toCoord) {
    res.push({
    fromName: dataItem[0].name,
    toName: dataItem[1].name,
    coords: [fromCoord, toCoord],
    value: dataItem[1].value
    });
    }
    }
    return res;
    };

    var color = ['#a6c84c', '#ffa022', '#46bee9'];
    var series = [];
    [['北京', BJData], ['上海', SHData], ['广州', GZData]].forEach(function (item, i) {
    series.push({
    name: item[0] + ' Top10',
    type: 'lines',
    coordinateSystem: 'geo',
    zlevel: 1,
    effect: {
    show: true,
    period: 6,
    trailLength: 0.7,
    color: '#fff',
    symbolSize: 3
    },
    lineStyle: {
